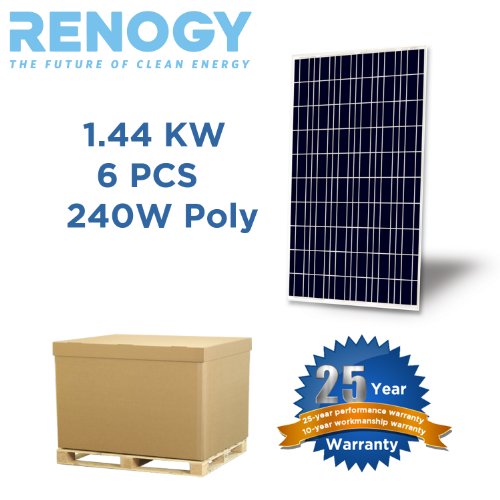

Six(6) Pc Premium Renogy 240 Watt Solar Panel UL Listed-25 Year Warranty Polycrystalline /Made-In-USA Solar Cells
Price:


Product Feature
- High Modules Conversion Efficiency
- Guaranteed & Positive Output Tolerance (0-3%)
- Delivered ready for connection & Fast and inexpensive mounting
- Withstand high wind (2400 Pa) and Snow loads (5400 Pa) & Excellent performance in low light environments
- Quality Insured By CHUBB: General liability/Errors and Omissions Liability
Product Description
Electrical SpecificationsOptimum Operating Voltage (Vmp): 31.2 V
Optimum Operating Current (Imp): 7.69 A
Open - Circuit Voltage (Voc): 37.2 V
Short- Circuit Current (Isc): 8.34 A
Maximum Power at STC: 240 W
Operating Module Temperature: -40°C to + 90°C
Cell Efficiency 16.9%
Module Efficiency 14.69%
Maximum System Voltage: 600 V DC (UL) / 1000 V DC (IEC)
Maximum Series Fuse Rating: 15A
STC: Irradiance 1000 W/m2, module temperature 25°C, AM=1.5;
Mechanical Specifications
Solar Cell: Poly-crystalline 156 x 156 mm (6 inches)
No. of cells: 60 (6 x 10)
Dimensions: 65 x 39 x 1.6 in (1650 x 990 x 40 mm)
Weight: 41.9 lbs (19.0 kg)
Front Glass: 3.2 mm (.13 in) tempered glass
Frame: Anodized aluminum alloy
Junction Box: IP67 rated
Output Cables: 4.0 mm2 (.006 in2), 1000mm(39.4inches)
Connectors: MC4 compatible
UL Listed: UL 1703
Fire Rating: Class C
Six(6) Pc Premium Renogy 240 Watt Solar Panel UL Listed-25 Year Warranty Polycrystalline /Made-In-USA Solar Cells Review
I couldn't be more happy with these panels they produce output in very little light.. I would certainly buy moreMost of the consumer Reviews tell that the "Six(6) Pc Premium Renogy 240 Watt Solar Panel UL Listed-25 Year Warranty Polycrystalline /Made-In-USA Solar Cells" are high quality item. You can read each testimony from consumers to find out cons and pros from Six(6) Pc Premium Renogy 240 Watt Solar Panel UL Listed-25 Year Warranty Polycrystalline /Made-In-USA Solar Cells ...
